Product R&D Background:

Modern HVAC systems, data centers, and rail transportation ventilation systems extensively use EC permanent magnet fans. These fans incorporate built-in rectifier-inverter drives that act as nonlinear loads, with DC-link energy storage capacitance significantly smaller than that of traditional variable frequency drives. During operation, they generate substantial 5th, 7th, 11th, and 13th harmonic currents. If standard VFD harmonic filters are used, resonance between the grid, filter, and EC drives can easily occur, leading to systemic issues such as DC-link over voltage, fan speed reduction, drive protection trips, false triggering of building automation systems, and overheating of power distribution equipment.

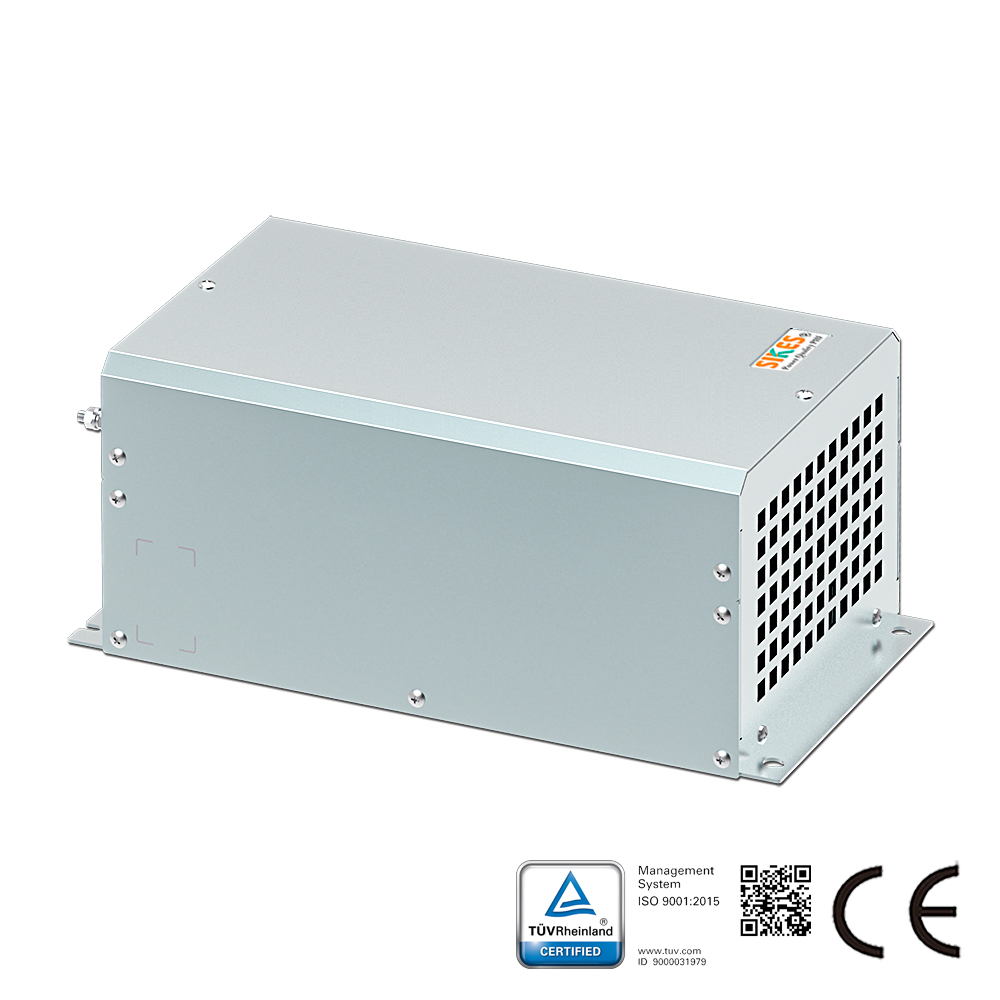

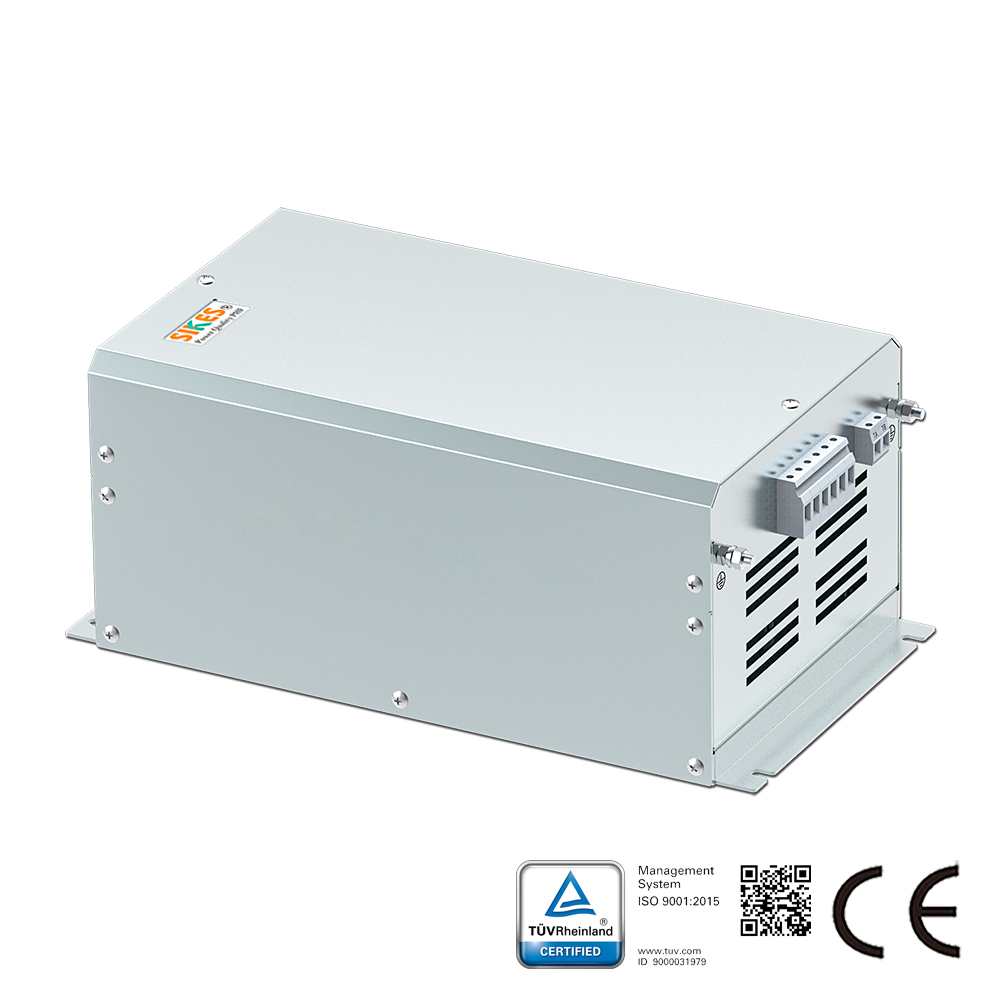

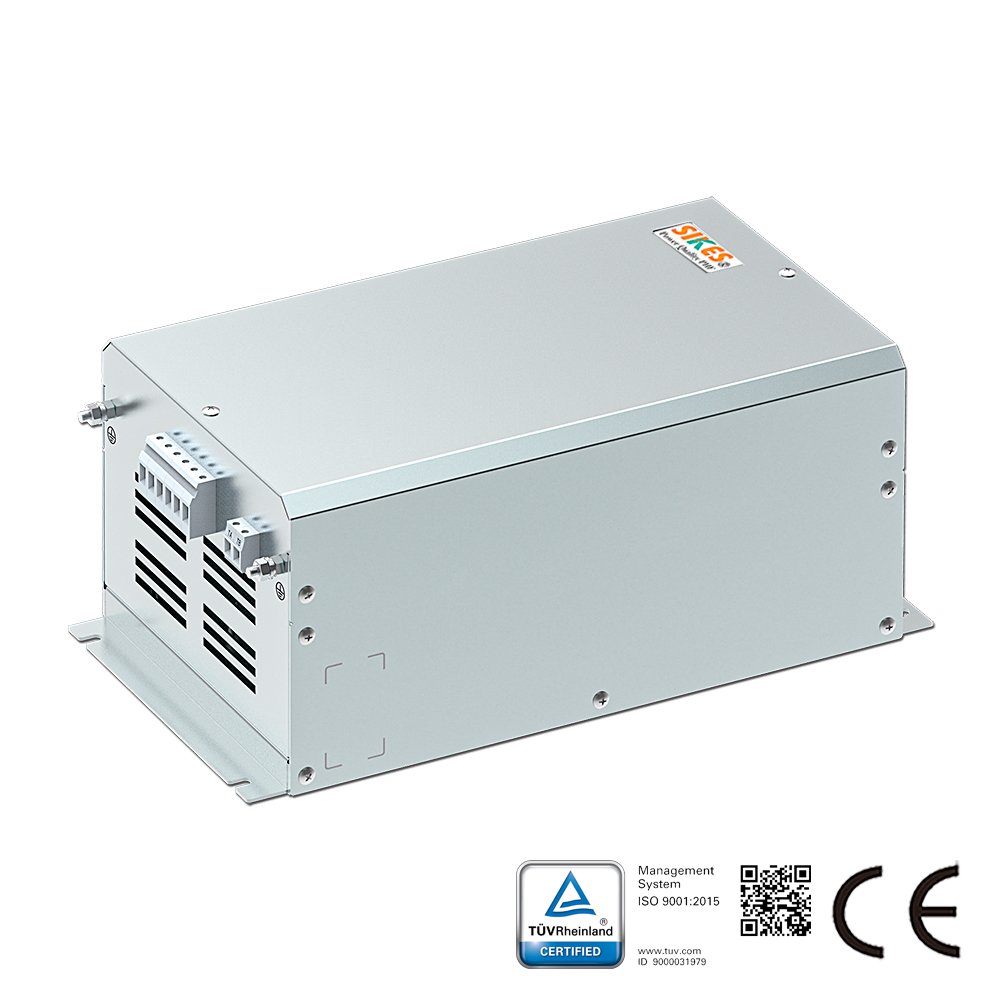

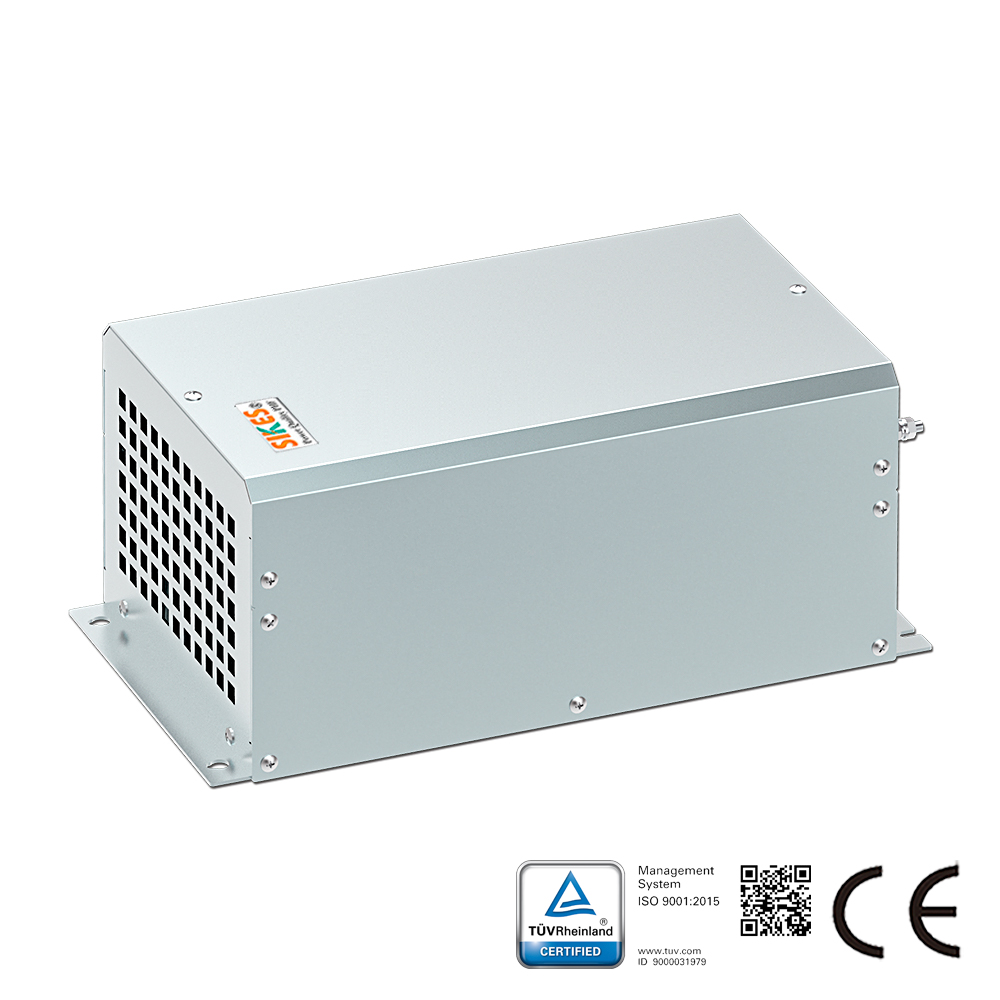

This dedicated harmonic filter for EC fans is specifically optimized based on the low DC-link capacitance characteristics of EC drives. It is designed to eliminate resonance risks from the topology level, achieving stable harmonic mitigation for clusters of multiple EC fans, and meets the high-standard power quality requirements of building services, data centers, medical clean room facilities, rail transit, and other demanding applications.

Product Operating Principle:

The device is installed in series at the front end of the main power supply to the EC fans. It consists of linear filtering reactors, low-distortion filtering capacitors, and other components. It precisely absorbs harmonic currents generated by the EC fans at various frequencies, while simultaneously blocking harmonics from other nonlinear loads on the grid side from penetrating back into the fan drives. Equipped with integrated reactive power compensation, it also optimizes the system power factor, cleans up the incoming current waveform, and reduces harmonic losses in the power distribution system.
